Accudo Series
Mechanically Actuated Diaphragm Pump

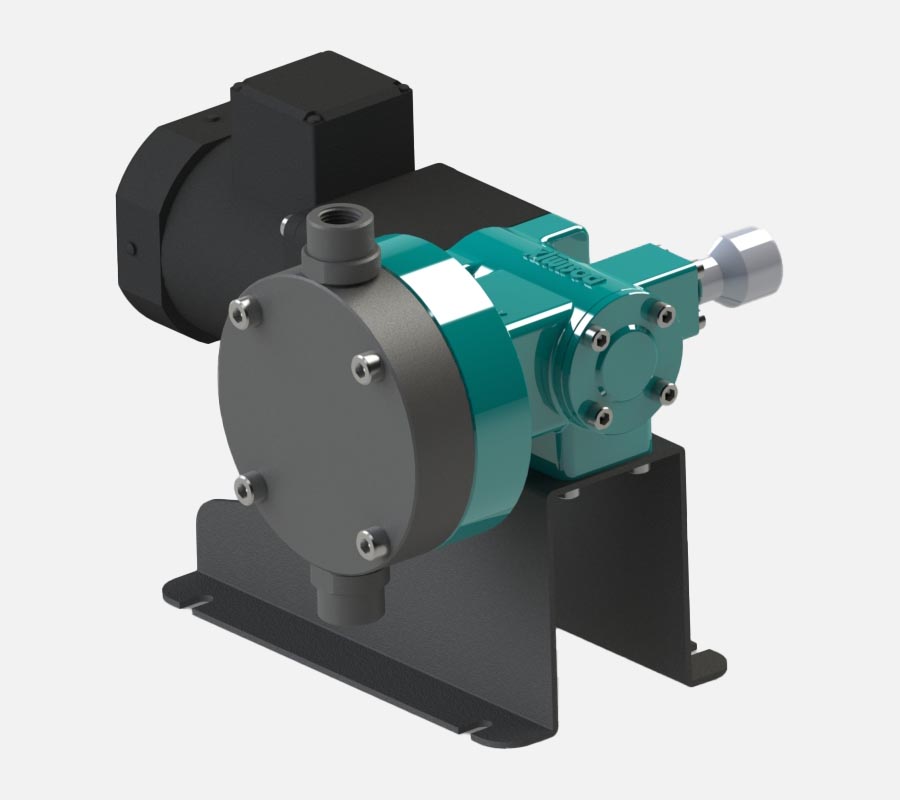

Accudo Series is a next generation motor driven economic and small capacity mechanical diaphragm pump featuring a Horizontal mounted, high efficiency, high performing motor, within an CI housing. Enhanced by its dual cam mechanical structure, the pump features high levels of stability whilst remaining a low noise unit and offering a very precise flow rate.
Suitable for a wide range of uses, it offers a high level of repetitive accuracy and is capable of pumping a wide range of viscous liquids, slurries or chemicals.
The Accudo series electric motor drives pump mechanism’s plunger backwards and forwards, drawing the membrane and creating suction from the supply chamber. The resulting volume change in the pump chamber in turn pushes the ball up and generates a squeezing action to effect fluid transfer. The flow rate of between 5-150 l/h can be adjusted by regulating the stroke length.
Accudo Pump offers the following key features designed to ensure efficient, long term reliable pumping and fluid transfer:
- Reduced Footprint – to make installation easier.
- Patented Design of Diaphragm.
- Premium Graded Metallic Power head – ensures ease of installation and durability
- Metallic Helical Gear Reducer which capable to produce Higher Torque then conventional Worm type gearbox.
- Simple but robust construction – provide ideal value for money.
- High efficiency motors with high flow rate 5 to 150 l/h.
- 1 Year onsite Warranty on Diaphragm.
- Additionally, Stroke Setting Control Knob arrangement to adjust required flowrate.
- Also available 4-20 mA Auto version for Automatic capacity adjustment.
Technical Specifications
- Flow rate: 5 – 150 l/h
- Max pressure: 20 bar
- Stroke rate: from 40 to168 stroke / minute
- Stroke length: 3.6 – 5.2 – 6.2 mm
- Pump head: PP, PTFE, PVDF, SS316L
| Pump Model | Flow Rate@ 50 Hz | Max back pressure | Suction/Discharge Connection | Electric Motor 3ph – 415 VAC, 1ph – 240 VAC |
|||
| bar | p.s.i | ||||||
| l/h | gl/h | SS 316L | PP, PTFE, PVDF | ||||
| D M T A 0 0 0 1 | 5 | 1.32 | 20 | 290 | ½” BSP (F) | ½” BSP (F) | 0.04 kw 0.06 kw 0.09 kw 0.12 kw 0.18 kw (Refer Note) |
| D M T A 0 0 0 2 | 6 | 2.11 | 18 | 261 | |||
| D M T A 0 0 0 3 | 10 | 2.64 | 12.5 | 181.2 | |||
| D M T A 0 0 0 4 | 50 | 13.20 | 6 | 87 | |||
| D M T A 0 0 0 5 | 80 | 21.13 | 6 | 87 | |||
| D M T A 0 0 0 6 | 120 | 31.7 | 6 | 87 | |||
| D M T A 0 0 0 7 | 150 | 39.62 | 3 | 43.51 | |||
Note: – Selection of motor power shall be based on Process Parameters of the system.
Applications :
This Pumps are in widely used in various process applications in
- RO plants
- Steel
- Cement
- Paper
- Food & Beverage
- Chemical
- Textiles
- Pharma
- Automobile
- Sugar
- Oil & Gas
- Fertilizer
- Water Treatment
- General industries.
